outdoorLine
Watertight, dustproof and extremely robust. Available in 19 standard sizes, 4 compact sizes und 2 standard colors.
+49 (0)4131 / 26 664-24
Case series outdoorLine
All outdoorLine plastic cases are made of extra tough polypropylene that provides extremely high shock and impact resistance. They all feature automatic pressure release valves, secure but easy to open throw latches, mounting possibilities for padlocks, shoulder straps and divider plates.
Additionally to our standard colors orange and black the three versions 3613, 3614 and 3615 are also available in “sahara” (right-hand picture). This dirt resistant version perfectly fits the concept of the entire case series – to withstand every outdoor use, regardless of whether it is on land, in water or in the air.
Thanks to their IP67 certification and the substantial savings the outdoorLine cases are possible alternatives to other watertight cases, e.g. PELI cases.
Case series accessories
>> foam inlays (standard or customized)
>> deep drawn inlays
>> bags & dividers
>> mounting possibilities for padlocks
>> printing and labels
>> backpack carrying system
>> padded carrying straps
>> trolley systems
>> organizers for photographic equipment
>> tool carrying compartments
Application range
>> photographic equipment
>> measurement devices
>> maritime industry and harbour logistics
>> medical technology
>> and many more
Solutions
outdoorLine 3611
| Internal dimensions: | 200 x 125 x 90 (68/22) mm |
| External dimensions: | 223 x 172 x 102 mm |
| Colors: | black |
| Optional accessories: | grid foam set |
| Weight: | 0,65 kg |
outdoorLine 3612.105
| Internal dimensions: | 235 x 180 x 105 (80/25) mm |
| External dimensions: | 258 x 243 x 117 mm |
| Colors: | black /orange |
| Properties: | IP67-certificate |
| Optional accessories: | grid foam set |
| Weight: | 1,0 kg |
outdoorLine 3612.155
| Internal dimensions: | 235 x 180 x 155 (130/25) mm |
| External dimensions: | 258 x 243 x 167 mm |
| Colors: | black / orange |
| Properties: | IP67-certificate |
| Optional accessories: | grid foam set |
| Weight: | 1,2 kg |
outdoorLine 3613
| Internal dimensions: | 300 x 225 x 132 (99/33) mm |
| External dimensions: | 336 x 300 x 148 mm |
| Colors: | black / orange |
| Properties: | IP67-certificate |
| Optional accessories: | grid foam set |
| Weight: | 1,75 kg |
outdoorLine 3627.115
| Internal dimensions: | 380 x 270 x 115 (79/36) mm |
| External dimensions: | 414 x 345 x 129 mm |
| Colors: | black |
| Properties: | IP67-certificate |
| Optional accessories: | grid foam set |
| Weight: | 2,10 kg |
outdoorLine 3627.160
| Internal dimensions: | 380 x 270 x 160 (124/36) mm |
| External dimensions: | 414 x 345 x 174 mm |
| Colors: | black |
| Properties: | IP67-certificate |
| Optional accessories: | grid foam set |
| Weight: | 2,455 kg |
outdoorLine 3629
| Internal dimensions: | 400 x 230 x 260 (212/48) mm |
| External dimensions: | 456 x 290 x 318 mm |
| Colors: | black |
| Properties: | IP67-certificate |
| Optionale accessories: | grid foam set |
| Weight: | 2,4 kg |
outdoorLine 3614
| Internal dimensions: | 426 x 290 x 159 (114/45) mm |
| External dimensions: | 464 x 366 x 176 mm |
| Colors: | black / orange |
| Properties: | IP67-certificate |
| Optional accessories: | grid foam set,, ool carrying compartments, added organizer for photographic equipment |
| Weight: | 2,8 kg |
outdoorLine 3626.125
| Internal dimensions: | 465 x 335 x 125 (85/40) mm |
| External dimensions: | 502 x 415 x 141 mm |
| Colors: | black |
| Properties: | IP67-certificate |
| Optional accessories: | grid foam set |
| Weight: | 2,6 kg |
outdoorLine 3626.220
| Internal dimensions: | 465 x 335 x 220 (180/40) mm |
| External dimensions: | 502 x 415 x 246 mm |
| Colors: | black |
| Properties: | IP67-certificate |
| Optional accessories: | grid foam set |
| Trolley systems: | Trolley separately available |
| Weight: | 3,4 kg |
outdoorLine 3615.194
| Internal dimensions: | 500 x 350 x 194 (136/58) mm |
| External dimensions: | 555 x 428 x 211 mm |
| Colors: | black / orange |
| Properties: | IP67-certificate |
| Optional accessories | grid foam set, tool carrying compartments padded organizer for photographic equipment |
| Trolley systems: | trolley separately available |
| Weight: | 3,8 kg |
outdoorLine 3615.280
| Internal dimensions: | 500 x 350 x 280 (222/58) mm |
| External dimensions: | 555 x 428 x 306 mm |
| Colors: | black |
| Properties: | IP67-certificate |
| Optional accessories | grid foam set |
| Trolley systems: | trolley separately available |
| Weight: | 5,1 kg |
outdoorLine 3619
| Internal dimensions: | 520 x 290 x 200 (155/45) mm |
| External dimensions: | 574 x 361 x 225 mm |
| colors: | black |
| Properties: | IP67-certificates |
| Standard accessories: | grid foam set |
| Optional accessories: | padded organizer for photographic equipment |
| Trolley systems: | trolley separately available |
| Weight: | 4,1 kg |

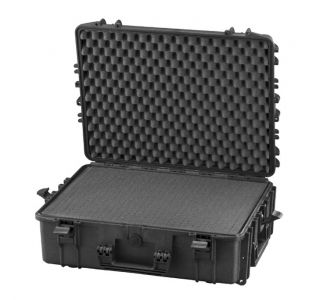

outdoorLine 3617.190
| Internal dimensions: | 538 x 405 x 190 (140/50) mm |
| External dimensions: | 594 x 473 x 215 mm |
| Colors: | black |
| Properties: | IP67-certificated |
| Optional accessories: | grid foam set |
| Trolley systems: | trolley separately available |
| Weight: | 4,9 kg |
outdoorLine 3617.245
| Internal dimensions: | 538 x 405 x 245 (195/50) mm |
| External dimensions: | 594 x 473 x 270 mm |
| Colors: | black |
| Properties: | IP67-certificated |
| Optional accessories: | grid foam set |
| Trolley systems: | trolley separately available |
| Weight: | 5,3 |
outdoorLine 3630.360
| Internal dimensions: | 615 x 615 x 360 (300/60) mm |
| External dimensions: | 680 x 675 x 390 mm |
| Colors: | black |
| Properties: | IP67, DS 81-41, STANAG 4280 |
| Optional accessories: | grid foam set |
| Trolley systems: | Trolley separately available |
| Weight: | 11,6 kg |
outdoorLine 3616.250
| Internal dimensions: | 620 x 460 x 250 (190/60) mm |
| External dimensions: | 687 x 528 x 276 mm |
| Colors: | black |
| Properties: | IP67-certificate |
| Optional accessories: | grid foam set, wheels |
| Trolley systems: | trolley separately available |
| Weight: | 6,9 kg |
outdoorLine 3616.340
| Internal dimensions: | 620 x 460 x 340 (280/60) mm |
| External dimensions: | 687 x 528 x 366 mm |
| Colors: | black |
| Properties | IP67-certificate |
| Optional accessories: | grid foam set, wheels |
| Trolley systems: | trolley separately available |
| Weight: | 8,0 |
outdoorLine 3624.280
| Internal dimensions: | 750 x 480 x 280 (220/60) mm |
| External dimensions: | 816 x 540 x 306 mm |
| Colors: | black |
| Properties: | IP67-certificate |
| Optional accessories | grid foam set, knob foam set |
| Trolley systems: | integrated wheels and handle |
| Weight: | 10,2 kg |
outdoorLine 3624.400
| Internal dimensions: | 750 x 480 x 400 (340/60) mm |
| External dimensions: | 816 x 540 x 426 mm |
| Colors: | black |
| Properties: | IP67-certificate |
| Optional accessories | grid foam set, knob foam set |
| Trolley systems: | integrated wheels and handle |
| Weight: | 12,1 kg |
outdoorLine 3625
| Internal dimensions: | 800 x 370 x 140 (95/45) mm |
| External dimensions: | 850 x 440 x 158 mm |
| Colors: | black |
| Properties: | IP67-certificate |
| Optional accessories: | grid foam set, knob foam set |
| Weight: | 6,2 kg |
outdoorLine 3628
| Internal dimensions | 820 x 600 x 450 x (380/70) mm |
| External dimensions | 880 x 660 x 483 mm |
| Colors: | black |
| Properties: | IP67-certificate |
| Optional accessories: | grid foam set, knob foam set |
| Weight: | 19 kg |

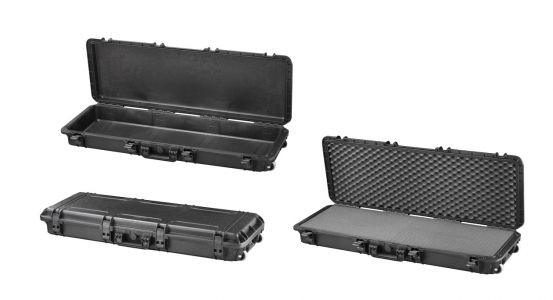

outdoorLine 3618.140
| Internal dimensions: | 1.100 x 370 x 140 (95/45) mm |
| External dimensions | 1.177 x 450 x 158 mm |
| Colors: | black |
| Properties: | IP67-certificate |
| Optional accessories | grid foam set |
| Trolley systems: | integrated wheels and handle |
| Weight: | 8,3 kg |
outdoorLine 3618.330
| Internal dimensions: | 1.100 x 370 x 330 (285/45) mm |
| External dimension: | 1.177 x 450 x 348 mm |
| Colors: | black |
| Properties: | IP67, DS 81-41, STANAG 4280 |
| Optional accessories: | grid foam set |
| Trolley systems: | integrated wheels and handle |
| Gewicht: | 11,0 kg |
outdoorLine 3631
| Internal dimensions: | 1.350 x 370 x 150 (105/45) mm |
| External dimensions: | 1.420 x 440 x 168 mm |
| Colors: | black |
| Properties: | IP67, DS 81-41, STANAG 4280 |
| Optional accessories: | grid foam set |
| Trolley systems: | integrated wheels and handle |
| Weight: | 10,0 kg |
Case series outdoorLine compact
The outdoorLine includes 4 "compact" cases which are also waterproof and highly impact resistant. Each product comes with a IP67 certification and a pressure compensating valve system. The water-and dustproof boxes are especially fit for the safe packaging of electronic devices and accessories like memory cards, tablets and smartphones.
Interior variations: grid foam, knob foam, individual foam inlays, printing
outdoorLine 3620
| Internal dimensions: | 157 x 85 x 41 (29/12) mm |
| External dimensions: | 175 x 115 x 47 mm |
| colors: | schwarz |
| Properties: | IP67-certificate |
| Optional accessories: | grid foam set, knob foam set |
| Weigt: | 0,14 kg |
outdoorLine 3621
| Internal dimensions: | 212 x 140 x 47 (33/14) mm |
| External dimensions: | 230 x 175 x 53 mm |
| Colors: | black |
| Properties: | IP67-certificate |
| Optional accessories: | grid foam set, knob foam set |
| Weight: | 0,26 kg |
outdoorLine 3632
| Internal dimensions: | 292 x 92 x 65 (52/13) mm |
| External dimensions: | 309 x 128 x 72 mm |
| Colors: | black |
| Optional accessories: | grid foam set, knob foam set |
| Weight: | 0,36 kg |
outdoorLine 3622
| Internal dimensions: | 316 x 195 x 53 (37/16) mm |
| External dimensions | 350 x 230 x 59 mm |
| Colors: | black |
| Properties: | IP67-certificate |
| Optional accessories: | grid foam set, knob foam set |
| Weight: | 0,48 kg |
outdoorLine 3623
| Internal dimensions: | 316 x 195 x 81 (65/16) mm |
| External dimensions: | 350 x 230 x 86 mm |
| Colors: | black |
| Properties: | IP67-certificate |
| Optional accessories: | grid foam set, knob foam set |
| Weight: | 0,54 |
