Case series adventureLine

Our watertight and impact proof adventureLine cases do not just stand out optically due to their contrastingly colored handles. They are also made from a special material.

This specific mixture of polypropylene and synthetic resin makes for very thin and elastic top and bottom shells with improved impact resistance. Accordingly the acronym HPRC stands for "high performance resin cases".

In addition to 20 standard sizes the adventureLine also offers special case shapes, such as pilot or camera cases, one protective backpacking case, small SD-card boxes as well as diverse accessories such as inside pockets and insets. All models are watertight and especially robust and are certified accordingly.



Accessories

>> foam inlays (standard or customized)

>> standard foam inlays for multicopter

>> standard foam inlays for photographic- & film equipment

>> deep drawn inlays

>> carrying straps

>> organizers

>> bags & divider plates

>> inside pockets & insets

>> printing & labels

Application range

>> tool and machine building industry

>> medical technology

>> seafaring & aircraft

>> measuring instruments

Special cases incl. foam inlays available for:

>> multicopter technology

>> photographic- & film equipment


adventureLine HPRC 2100

Internal dimensions: 210 x 145 x 94 (76/18) mm
External dimensions: 235 x 196 x 110 mm
Colors: black
Handles: red
Properties: IP67-certificate
Standard accessories grid foam set
Weight: 0,7 kg

adventureLine HPRC 2200

Internal dimensions: 236 x 182 x 108 (79/29) mm
external dimensions: 258 x 230 x 123 mm
colors: black
Handles: red
Properties: IP67-certificate
Standard accessories: grid foam set
Weight: 0,9 kg

adventureLine HPRC 2250

Internal dimensions: 236 x 182 x 155 (126/29) mm
External dimensions: 258 x 230 x 170 mm
Colors: black
Handles: red
Properies: IP67-certificate
Standard accessories: grid foam set
Weight: 1,0 kg

adventureLine HPRC 2300

Internal dimensions: 304 x 231 x 137 (106/31) mm
External dimensions: 335 x 289 x 155 mm
Colors: black
Handles: red
Properties: IP67-certificate
Standrad accessories: grid foam set
Weight: 1,67 kg

adventureLine HPRC 2350

Internal dimensions: 340 x 235 x 99 (70/29) mm
External dimensions: 365 x 290 x 115 mm
Colors: black
Handles: red
Properties: IP67-certificate
Standard accessories: grid foam set
Weight: 1,48 kg

adventureLine HPRC 2400

Internal dimensions: 380 x 266 x 152 (107/45) mm
External dimension: 405 x 330 x 170 mm
Colors: black
Handles: red
Properties: IP67-certificate
Standard accessories: grid foam set
Weight: 2,05 kg

adventureLine HPRC 2460

Internal dimensions: 409 x 306 x 175 (105/70) mm
External dimensions: 434 x 371 x 193 mm
Colors: black
Handles: red
Properties: IP67-certificate
Standard accessories: grid foam set
Weight: 2,6 kg

adventureLine HPRC 2500

Internal dimensions: 450 x 323 x 175 (129/46) mm
External dimensions: 478 x 390 x 194 mm
Colors: black
Handles: red
Properties: IP67-cetificate
Standard accessories: grid foam set
Weight: 3,1 kg

adventureLine HPRC 2530

Internal dimensions: 513 x 288 x 132 (86/46) mm
External dimensions: 540 x 350 x 153 mm
Colors: black
Handles: red
Properties: IP67-certificate
Standard accessories: grid foam set
Weight: 2,8 kg

adventureLine HPRC 2550W

Internal dimensions: 513 x 288 x 200 (152/48) mm
External dimensions: 549 x 346 x 236 mm
Colors: black
Handles: red
Properties: IP67-certificate
Standard accessories: grid foam set
Trolley systems: integrated trolley
Weight: 4,8 kg

adventureLine HPRC 2580

Internal dimensions: 390 x 310 x 89 (45/44) mm
External dimensions: 410 x 359 x 110 mm
Colors: black
Handles: red
Properties: IP67-certificate
Standard accessories: grid foam set
Weight: 2,4 kg

adventureLine HPRC 2600

Internal dimensions: 482 x 358 x 198 (152/46) mm
External dimensions: 543 x 419 x 218 mm
Colors: black
Handles: red
Properties: IP67-certificate
Standard accessories: grid foam set
Weight: 4,2 kg

adventureLine HPRC 2600W

Internal dimensions: 482 x 358 x 218 (172/46) mm
External dimensions: 546 x 423 x 250 mm
Colors: black
Handles: red
Properties: IP67-certificated
Standard accessories: grid foam set
Trolley systems: integrated trolley
Weight: 6,05 kg

adventureLine HPRC 2700

Internal dimensions: 555 x 459 x 205 (160/45) mm
External dimensions: 617 x 525 x 227 mm
Colors: black
Handles: red
Properties: IP67-certificate
Standard accessories: grid foam set
Weight: 5,5 kg

adventureLine HPRC 2700W

Internal dimensions: 555 x 459 x 256 (211/45) mm
External dimensions: 620 x 525 x 280 mm
Colors: black
Handles: red
Properties: IP67-certificated
Standard accessories: grid foam set
Trolley systems: integrated Trolley
Weight: 8,3 kg

adventureLine HPRC 2710

Internal dimensions: 555 x 459 x 256 (211/45) mm
External dimensions: 617 x 525 x 280 mm
Colors: black
Handles: red
Properties: IP67-certifcate
Standard accessories: grid foam set
Weight: 6,7 kg

adventureLine HPRC 2730W

Internal dimensions: 509 x 460 x 316 (271/45) mm
External dimensions: 620 x 520 x 350 mm
Colors: black
Handles: red
Properties: IP67-certificate
Standard accessories: grid foam set
Trolley systems: integrated trolley
Weight: 7,55 kg

adventureLine HPRC 4600W

Internal dimensions: 611 x 611 x 345 (289/56)
External dimensions: 670 x 677 x 388 mm
Colors: black
Handles: red
Properties: IP67-Zcertificate
Standard accessories: grid foam set
Trolley systems: integrated trolley
Weight: 10,7 kg

adventureLine HPRC 2760W

Internal dimensions: 690 x 450 x 300 (250/50) mm
External dimensions: 750 x 510 x 329 mm
Colors: black
Handles: red
Properties: IP67-certificate
Standard accessories: grid foam set
Trolley systems: integrated trolley
Weight: 9,2 kg

adventureLine HPRC 2780W

Internal dimensions: 749 x 525 x 366 (293/73) mm
External dimensions: 810 x 586 x 388 mm
Colors: black
Handles: red
Properties: IP67-certificate
Standard accessoeries: grid foam set
Trolley systems: integrated trolley
Weight: 12,2 kg

adventureLine HPRC 2800W

Internal dimensions: 749 x 525 x 455 (382/73) mm
External dimensions: 810 x 586 x 479 mm
Colors: black
Handles: red
Properties: IP67-certificate
Standard accessories: grid foam set
Trolley systems: integrated trolley
Weight: 13,2 kg

adventureLine HPRC 5400W

Internal dimensions: 1140 x 350 x 160 (115/45) mm
External dimensions: 1175 x 410 x 181 mm
Colors: black
Handles: red
Properties: IP67-certificate
Standard accessoeries: grid foam set
Trolley systems: integrated trolley
Weight: 7,9 kg

adventureLine HPRC 4050

Internal dimensions: 261 x 171 x 220 (196/24) mm
External dimensions: 284 x 223 x 260 mm
Colors: black
Handles: red
Properties: IP67-certificate
Standard accessories: grid foam set
Weight: 1,66 kg

adventureLine HPRC 4100

Internal dimensions: 401 x 231 x 231 (185/46) mm
External dimensions: 424 x 284 x 276 mm
Colors: black
Handles: red
Properties: IP67-certificated
Standard accessories: grid foam set
Weight: 2,8 kg

adventureLine HPRC 4200

Internal dimensions: 460 x 240 x 400 (334/66) mm
External dimensions: 483 x 293 x 445 mm
Colors: black
Handles: red
Properties: IP67-certificated
Standard accessories: grid foam set
Weight: 5,0 kg

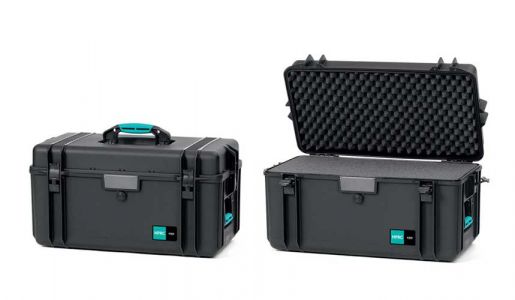

adventureLine HPRC 4300

Internal dimensions: 585 x 320 x 309 (229/80) mm
External dimensions: 690 x 380 x 355 mm
Colors: black
Handles: red
Properties: IP67-certificated
Standard accessories: grid foam set
Weight: 6,5 kg

adventureLine HPRC 4300W

Internal dimensions: 585 x 320 x 300 (220/80) mm
External dimensions: 690 x 380 x 358 mm
Colors: black
Handles: red
Properties: IP67-certificated
Standard accessories: grid foam set
Trolley systems: integrated trolley
Weight: 7,3 kg

adventureLine HPRC 4400

Internal dimensions: 420 x 420 x 389 (324/65) mm
External dimensions: 479 x 481 x 437 mm
Colors: black
Handles: red
Properties: IP67-certificated
Standard accessories: grid foam set
Weight: 6,7 kg

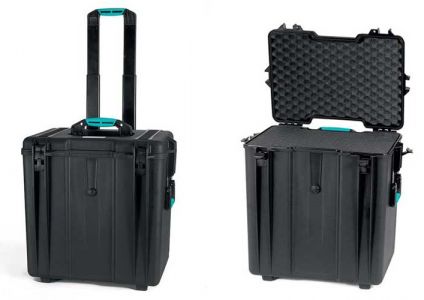

adventureLine HPRC 4700W

Internal dimensions: 508 x 301 x 497 (474/23) mm
External dimensions: 572 x 412 x 564 mm
Colors: black
Handles: red
Properties: IP67-certificated
Standard accessories: grid foam set
Trolley systems: integrated Trolley
Weight: 11,0 kg

adventureLine HPRC 4800W

Internal dimensions: 720 x 320 x 600 (540/60) mm
External dimensions: 776 x 380 x 649 mm
Colors: black
Handles: red
Properties: IP67-certificated
Standard accessories: grid foam set
Trolley systems: integrated trolley
Weight: 10,0 kg



Special models adventureLine

The adventureLine HPRC case series features many special shapes and insets. The hard protective backpacking case as well as the small SD-card boces are designed to fit their specific requirements in terms of shape and equipment. Other models such as tubular-cases for tripods are available upon inquiry.

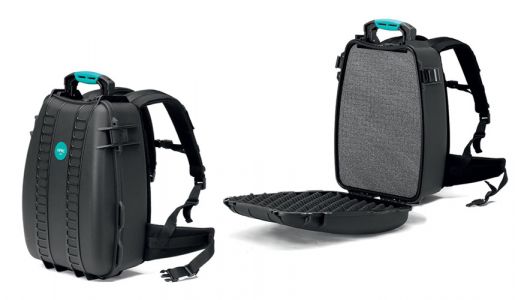

adventureLine HPRC 3500

Internal dimensions: 433 x 319 x 169 (97/72) mm
External dimensions: 498 x 370 x 185 mm
Colors: black
Handles: red
Properties: IP67-certificated
Standard accessories: grid foam set
Weight: 3,0 kg

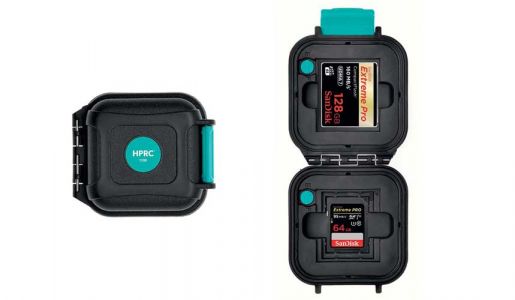

adventureLine HPRC 1100

Internal dimensions: 57 x 58 x 25,5 (12,8/12,7) mm
External dimensions: 69 x 80 x 32 mm
Colors: black
Handles: red
Properties: IP67-certificated
Standard accessories: inlay for memory cards
Weight: 0,05 kg

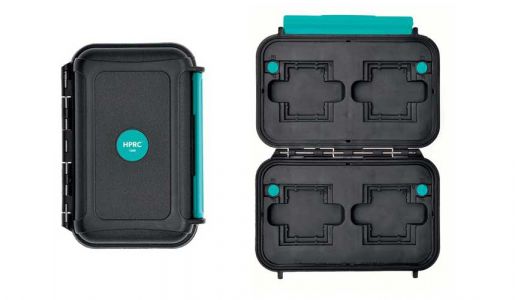

adventureLine HPRC 1300

Internal dimensions: 116 x 67 x 25,5 (12,8/12,7) mm
External dimensions: 127 x 90 x 32 mm
Colors: black
Handles: red
Properties: IP67-certificated
Standrad accessories: inlay for memory cards
Weight: 0,1 kg
